Engineered for Modern Agricultural Operations

Our AgriFlow HDS40 is designed to simplify and scale modern farming operations with precision and consistency. Built for demanding field conditions, we ensure efficient coverage, reduced manual effort, and reliable performance across large agricultural landscapes.

With intelligent flight control and high-capacity spraying capabilities, we enable uniform application and optimised resource use, helping you achieve smarter, faster, and more controlled crop management.

Technical Specifications That Power Field Performance

3-Blade Propeller System

3-Blade Propeller System

Designed for stable flight and extended operational reliability

Carbon Fibre Build Quality

Carbon Fibre Build Quality

Lightweight, durable, and built to withstand field conditions

RTK Dual Antenna System

RTK Dual Antenna System

Enhances positioning accuracy and flight precision

Obstacle Avoidance Module

Obstacle Avoidance Module

Enables safer navigation across varied terrains

Extended Remote Control Range

Extended Remote Control Range

Reliable connectivity for large-area operations

GENERAL SPECIFICATIONS

  • Total Weight

    44 kg

  • Dimensions (Unfolded)

    2840 × 2680 × 890 mm

  • Dimensions (Folded)

    1290 × 760 × 890 mm

  • Operating Temperature

    -5°C to 40°C

  • Working Voltage

    48–80V

FLIGHT PERFORMANCE

  • Operating Speed

    1–10 m/s

  • Flight Time (Full Load)

    Up to 7 minutes

  • Flight Time (No Load)

    Up to 21 minutes

SPRAYING SYSTEM

  • Tank Capacity

    40L

  • Nozzle Count

    6

  • Spray Width

    Up to 9 m

  • Flow Rate

    1–8 L/min (adjustable)

  • Droplet Size

    120–200 μm

  • Spray Height

    Approx. 3 m above crop canopy

  • Pump System

    Dual brushless pumps

  • Flowmeter Accuracy

    ≤3%

SPREADING CAPABILITY

  • Tank Capacity

    50L

  • Spreading Rate

    Up to 40 kg/min

  • Particle Size Range

    0.1–10 mm

  • Discharge Ports

    5

  • Material Detection

    Load cell system

  • Supported Materials

    Powders, granules, and seeds

Operational Capabilities for Modern Farming

Precision Crop Spraying

Precision Crop Spraying

Supports uniform spraying of pesticides, fertilisers, and nutrients across large agricultural areas with reduced wastage and improved field coverage.

Granular and Seed Distribution

Granular and Seed Distribution

Enables controlled spreading of seeds, fertilisers, and granular materials for faster and more efficient field operations.

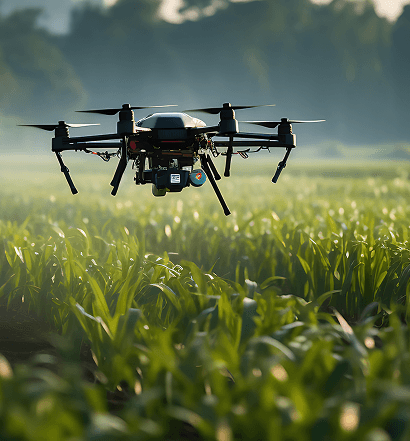

Crop Health Assessment

Crop Health Assessment

Aerial monitoring helps identify crop stress, uneven growth, and nutrient-related issues across large farming environments.

Orchard and Dense Crop Operations

Orchard and Dense Crop Operations

Aerial monitoring helps identify crop stress, uneven growth, and nutrient-related issues across large farming environments.

High-Efficiency Field Coverage

High-Efficiency Field Coverage

Built for repeated operations across extensive farmland with reliable performance and reduced dependency on manual labour.
